  • Scanning range way above A2
  • Very high optical resolution
  • Extremely high scanning speed
  • Free of IR and UV radiation
  • Virtual 3D technology (V3D)
  • Bidirectional scanning
  • Motorized heavy duty book cradle
  • Prime and consistent scanning results independent from ambient light
  • Scanning range 635 x 508 mm (25 x 20 inches)
  • Optical resolution of 600 ppi over the entire scanning range
  • 48 bit color depth
  • IP device with its individual IP address
  • Motorized 35 cm pull out book cradle as a standard feature
  • Upgradable to robotic scanning

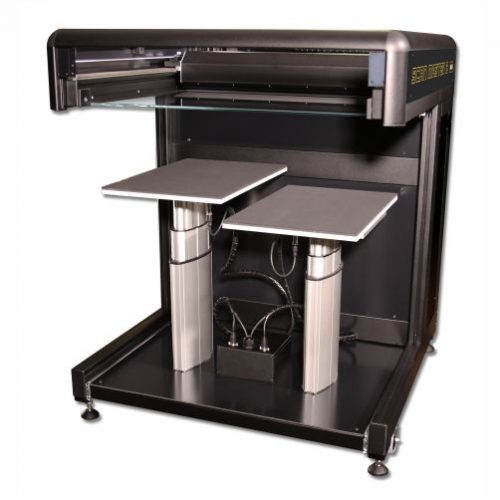

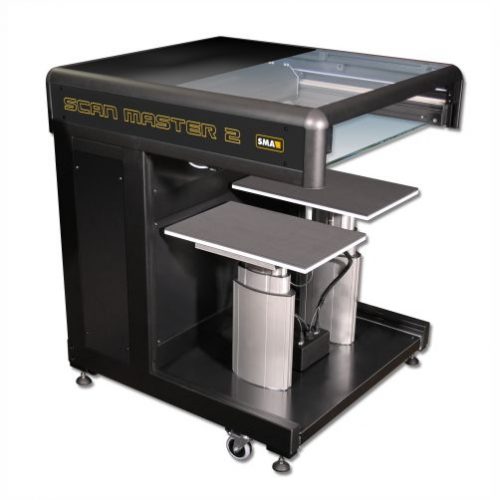

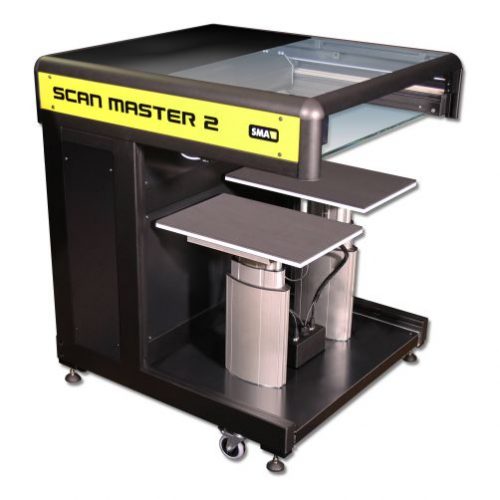

A2 Book Scanner SCAN MASTER 2

The A2 book scanner that handles the big boys!

The SCAN MASTER 2 is a special A2 book scanner. It was basically designed for applications that require a very high optical resolution and where the books are very thick. With its 35 cm motorized book cradle the SCAN MASTER 2 is able to handle books that other A2 book scanners are unable to cope with. Operating the SMA SCAN MASTER 2 A2 book scanner is easy and convenient. Simply place the book and hit the scan button. The rest of the process is fully automatic. All the operator has to do is to flip the page and release the scan. All SMA scanners are equipped with a special LED light illuminator that does not produce any ultraviolet or infrared radiation. Harmless and uniform illumination is guaranteed. The illuminator of all SMA scanners is located inside the scan head and is simply moved across the original. As a result all SMA book scanners can be operated independent from ambient light and do not irritate the operator‘s eyes.

The SCAN MASTER A2 book scanner comes with V3D Technology – a new scanning technology which allows users to scan many different types of originals. It offers the capability of digitizing structured surfaces such as wood, rubber, plastic, fabrics, carpet and many more types of material. Finally, light reflecting items such as coins, seals, metal prints and silver or Gold coated originals can be captured at the highest quality. The V3D technology presents new opportunities as it can be applied to materials outside the normal archive and library world. V3D stands for VISUAL 3D. It is a newly designed scanning technology that produces results that look like 3D. The process is based on different lighting scenarios where the same area is being captured with several different lighting scenarios on the fly. The software then combines the separate images into one image. As a result V3D images offer perfect reproductions of nearly any structured surface. In addition it increases the depth of field significantly. This approch is unique and raises the outstanding image quality of SMA scanners to another level. The V3D function can be disabled and regular 2D scanning can be performed.
